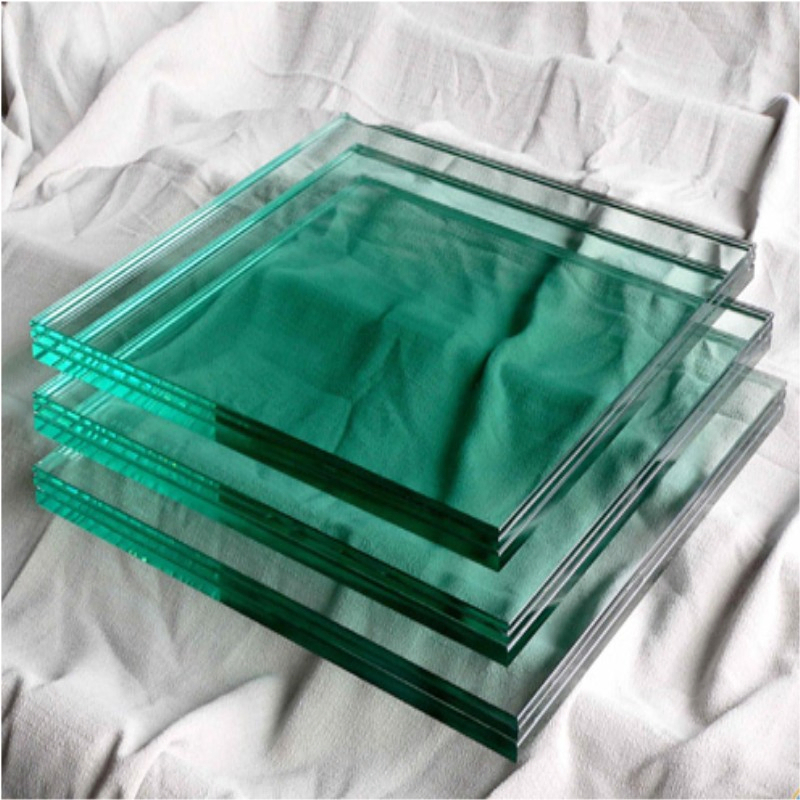

8 10 12 mm Clear Tempered Building Toughened Laminated Safety Glass for Window Door Stair Railing
Ultra Clear/Low iron/Clear
Tempered Glass / Laminated Safety Glass
for Balustrade / Fence / Railing Glass Polished edge
Tempered glass specification
| Glass type | Clear glass/Ultra clear glass |
| Glass thickness | 8-25mm |
| size | Max size:12000mm*32000mm |
| Min. size: 300mm*300mm (Free Glass sample) | |
| Edge dealing | polished edge, smooth ground edge, Pencil edge, OG edge, chamfered edges, and etc. |
| other dealings | drilling holes, cut-out, notch, digital printing, Ceramic Frit, silk-screen printing |
| Shape | customized |
| Logo printing | customized(CE Logo/CCC Logo/AS/NZS logo/Client's logo) |
| Standard size | 2134*3300/3660mm;2140*3300/3660mm;3660*2440mm |
What is tempered glass?
Clear/ultra clear tempered glass is made by forming compressive stress on the surface of the glass and heating the glass up to its intenerating temperature and then make the glass uniform cooling quickly. During the process of cooling, the exterior part of the glass is solidified because of the rapid cooling, while the interior part of the glass shrinks because of slow cooling, then forming compressive stress on the surface of the glass and tensile stress inside the glass, thus improving the intensity and heat stability of the glass. And when the breakage occur, its fragment will be harmeless to human.
-Characteristics:
★safety: when the breakage occur, tempered glass will appear hurtless obtuse angles when breakage.
★Strength: Five times more than ordinary glass.
★Heat stablity: Three times more than ordinary glass, could bear the temperature change about 200°C.
★anti-impact
[Laminated glass]
| Glass thickness | Customized |
| Glass type | 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm, 22mm, 25mm clear/ultra clear glass |
| PVB thickness | 0.38mm, 0.76mm, 1.14mm, 1.52mm, 1.90mm, 2.28mm and etc. |
| SGP thickness | 1.52mm,2.28mm,3.04mm and etc. |
| Interlayer type | Normal PVB film, Trosifol/SolutiaPVB film, Dupoint SentryGlas Puls fIlm, Saflex acoustic PVB |
| Size | customized (Max size:12000mm*3200mm) |

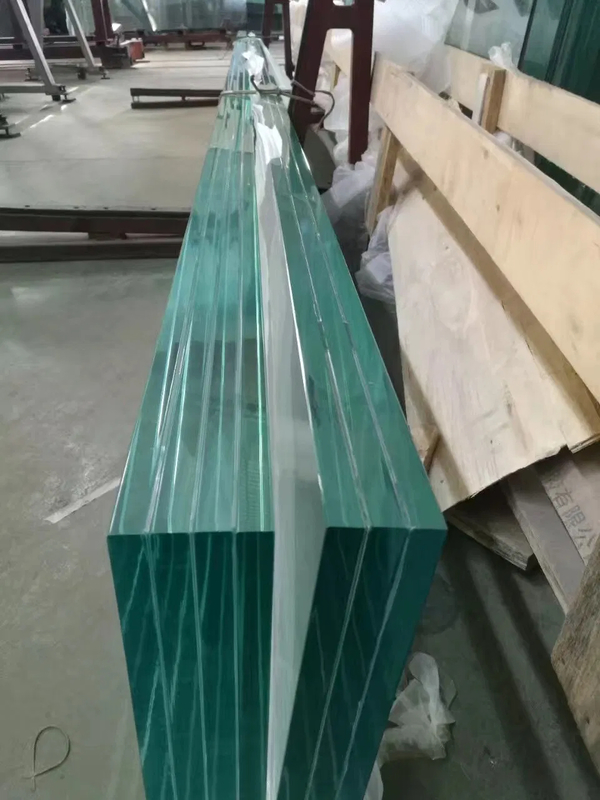

Laminated glass is a kind of safety glass which is manufactured by adhering two or more pieces of glass together with a flexible interlayer by using high temperature and pressure in an autoclave. The interlayer is generally either PVB (poly vinyl butyral) or Sentryglas Plus film (SGP).
[Characteristics]
Provide solutions for security, sound reduction, solar energy control, UV control, decoration
High security: The PVB/SGP interlayer withstands penetration from impact.
Sound reduction: PVB interlayer can effectively absorb the sound.
Solar energy control: PVB interlayer impedes the transmission of solar heat .
Decoration: Laminated glass with a tinted interlayer can creat the aesthetic sense to building.
| Curved Glass Limitation | |||||
| Thickness(mm) | Min. Radius | Max. size(mm) | Min. Size(mm) | ||
| H | Arc | H | Arc | ||
| 6 | 1000 | 5500 | 2440 | 600 | 800 |
| 8 | 1500 | ||||
| 10 | |||||
| 12 | |||||
| 15 | 2500 | ||||
| 19 | |||||
| All Dimension above is minimeter | |||||
| Specification tolerance (mm) (Flat tempered) | ||||
| Thickness of Glass | L≤1000 | 1000<L≤2000 | 2000<L≤3000 | 3000<L≤5000 |
| 4mm, 5mm, 6mm | +1, -2 | +2, -2 | +2, -3 | +3, -4 |
| 8mm, 10mm, 12mm | +2, -2 | +2, -3 | +3, -4 | |
| 15mm, 19mm | +2, -3 | +2, -4 | +3, -5 | |
[Application]
Facade, Curtain Wall, Villa, Super mall, Shop front, aquarium, skylight, storefront, airpore, train station, & etc.
Safe,violent proof, long corridor, balcony fence, gardern, balustrade, terrance and etc.
